G25-550 & T25, w/ Internally Wastegated Turbine Housing, .49 A/R. # 877895-5001S

Product image 1
1 / 3

G25-550 & T25, w/ Internally Wastegated Turbine Housing, .49 A/R. # 877895-5001S

      DOES NOT COME WITH FLANGES



      Understanding the Name:
      G25-550

      G designates 81 years of Garrett® heritage.

      25 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 550)

      Horsepower: 300 - 550

      Displacement: 1.4L - 3.0L

       Product Description:

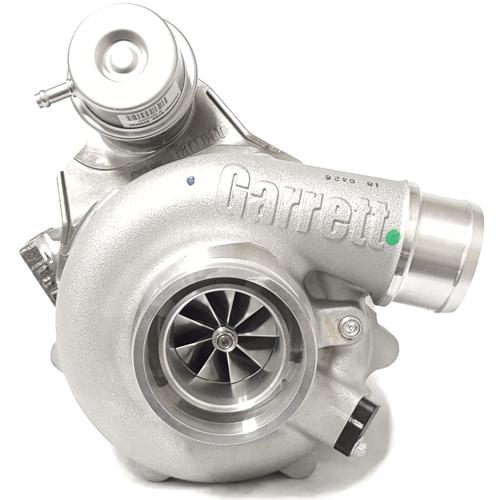

        The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel T25 Inlet, V-Band Outlet, and Internal Wastegate .49 A/R turbine housing (Garrett Part #877895-5001S). 550HP from a small frame package!
        • Ultra High Flow G-Series Compressor Wheel
        • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
        • Includes -4AN oil feed fitting and -6AN coolant/water fittings

      Product Specifications:

      • Compressor Wheel Inducer: 48mm
      • Compressor Wheel Exducer: 60mm
      • Compressor Wheel Trim: 65
      • Compressor Housing Inlet: 3 Inch Diameter
      • Compressor Housing Outlet: 2 Inch Diameter
      • Compressor Housing A/R: .70
      • Turbine Wheel Inducer: 54mm
      • Turbine Wheel Exducer: 49mm
      • Turbine Wheel Trim: 84
      • Turbine Housing Inlet: 3 Inch O.D. V-Band
      • Turbine Housing Outlet: 3.55 inch O.D. V-Band
      • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
      • Includes two Coolant Fittings to -6AN

      Oil Fittings, Flanges, and Components Solutions:

      • T25 Inlet Flange (For Turbo Manifold): FLS-037
      • T25 Inlet Gasket (For Turbo Manifold): GSK-004
      • Out V-Band Flange (For Down-pipe): FLS-351
      • Out V-Band Clamp (For Down-pipe): CLA-048
      • Oil drain flange: FLA-010
      • Oil drain gasket: GSK-008
      • Oil drain fasteners: FST-034
      • Boost Pressure Port Fitting: FTG-198

      • Speed Sensor Kit: ACS-032



              DOES NOT COME WITH FLANGES
