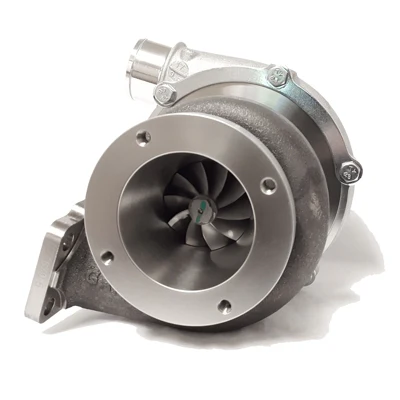

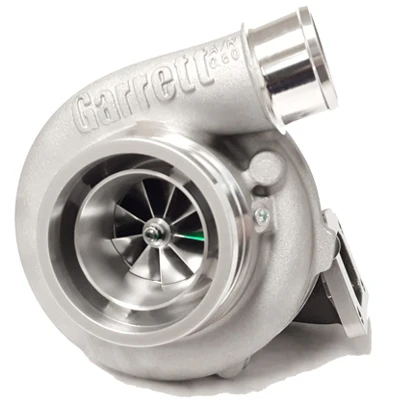

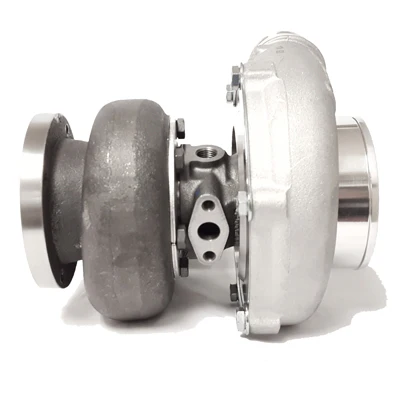

Gen2 GTX3071R DBB turbo w/ .63 A/R T3 Tbn Hsg GT 4 Bolt 3" conical exit GRT-TBO-C27

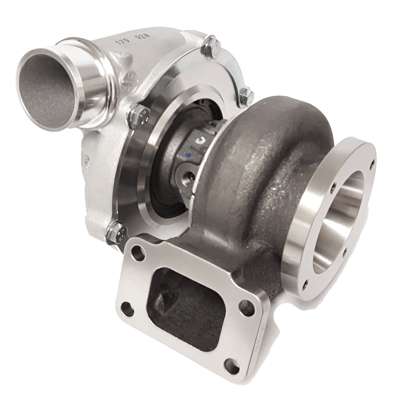

Product image 1
1 / 4

Gen2 GTX3071R DBB turbo w/ .63 A/R T3 Tbn Hsg GT 4 Bolt 3" conical exit GRT-TBO-C27

Product Description:
    Garrett GEN2 GTX3071R dual ball bearing turbocharger with .63 A/R T3 turbine housing and GT 4 BOLT 3" conical exit. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
    •
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085
  • Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

    • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:




    Product Description:
      Garrett GEN2 GTX3071R dual ball bearing turbocharger with .63 A/R T3 turbine housing and GT 4 BOLT 3" conical exit. Advanced GEN2 billet compressor wheel capable of 650HP!
    Product Features:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    Product Specifications:
    • Compressor Wheel Inducer: 54mm
    • Compressor Wheel Exducer: 71mm
    • Compressor Wheel Trim: 58
    • Compressor Housing A/R: 0.60
    • Turbine Wheel Inducer: 60mm
    • Turbine Wheel Exducer: 55mm
    • Turbine Wheel Trim: 84

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
    •
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085
  • Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

    • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:




    $709.12

    Original: $2,363.73

    -70%
    Gen2 GTX3071R DBB turbo w/ .63 A/R T3 Tbn Hsg GT 4 Bolt 3" conical exit GRT-TBO-C27—

    $2,363.73

    $709.12

    Description

    Product Description:
      Garrett GEN2 GTX3071R dual ball bearing turbocharger with .63 A/R T3 turbine housing and GT 4 BOLT 3" conical exit. Advanced GEN2 billet compressor wheel capable of 650HP!
    Product Features:
    • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
    • Forged billet aluminum compressor wheel
    • Dual ball bearing CHRA rotating assembly
    Product Specifications:
    • Compressor Wheel Inducer: 54mm
    • Compressor Wheel Exducer: 71mm
    • Compressor Wheel Trim: 58
    • Compressor Housing A/R: 0.60
    • Turbine Wheel Inducer: 60mm
    • Turbine Wheel Exducer: 55mm
    • Turbine Wheel Trim: 84

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
    •
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • Discharge Flange GT 4 Bolt 3" (Stainless Steel): FLS-085
  • Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: GSK-018

    • NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
