Turbo, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5005S GRT-TBO-P13

Product image 1
1 / 3

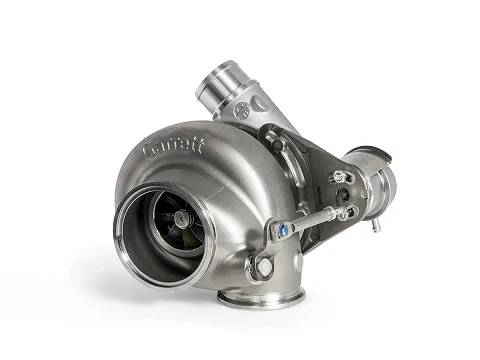

Turbo, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5005S GRT-TBO-P13

Product Description:

Garrett® G35-1050 standard rotation turbo assembly kit with 4" inlet and 2.5" outlet compressor housing and .83 A/R O/V, v-band in/out INTERNALLY WASTEGATED turbine housing.

Product Features:
  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:

  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:



    Product Description:

    Garrett® G35-1050 standard rotation turbo assembly kit with 4" inlet and 2.5" outlet compressor housing and .83 A/R O/V, v-band in/out INTERNALLY WASTEGATED turbine housing.

    Product Features:
    • New G Series compressor wheel aerodynamics
    • Fully machined speed sensor and pressure ports
    • Standard and reverse rotation configurations available
    • Oil restrictor and water fittings included with purchase
    • One piece center housing and backplate for increased durability
    • 4 water jacket ports for customizable installation
    • Mar-M turbine wheel material rated up to 1050° C | 1922° F
    • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
    Product Specifications:
    • Compressor Wheel Inducer: 68mm
    • Compressor Wheel Exducer: 84mm
    • Compressor Wheel Trim: 65
    • Compressor Housing A/R: 0.72
    • Turbine Wheel Inducer: 68mm
    • Turbine Wheel Exducer: 62mm
    • Turbine Wheel Trim: 84
    • Turbine Housing Inlet: 3 Inch O.D. V-Band
    • Turbine Housing Outlet: 3.55 inch O.D. V-Band
    • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
    • Includes two Coolant Fittings to -6AN
    • Includes Turbine Housing Inlet & Outlet V-Band Clamps

    INSTALLATION HARDWARE:

  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:



    $1,040.51

    Original: $3,468.36

    -70%
    Turbo, Garrett G35-1050, STANDARD ROTATION, 0.83 A/R INTERNAL W/G, V-Band In/Out, P/N 880707-5005S GRT-TBO-P13—

    $3,468.36

    $1,040.51

    Description

    Product Description:

    Garrett® G35-1050 standard rotation turbo assembly kit with 4" inlet and 2.5" outlet compressor housing and .83 A/R O/V, v-band in/out INTERNALLY WASTEGATED turbine housing.

    Product Features:
    • New G Series compressor wheel aerodynamics
    • Fully machined speed sensor and pressure ports
    • Standard and reverse rotation configurations available
    • Oil restrictor and water fittings included with purchase
    • One piece center housing and backplate for increased durability
    • 4 water jacket ports for customizable installation
    • Mar-M turbine wheel material rated up to 1050° C | 1922° F
    • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
    Product Specifications:
    • Compressor Wheel Inducer: 68mm
    • Compressor Wheel Exducer: 84mm
    • Compressor Wheel Trim: 65
    • Compressor Housing A/R: 0.72
    • Turbine Wheel Inducer: 68mm
    • Turbine Wheel Exducer: 62mm
    • Turbine Wheel Trim: 84
    • Turbine Housing Inlet: 3 Inch O.D. V-Band
    • Turbine Housing Outlet: 3.55 inch O.D. V-Band
    • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
    • Includes two Coolant Fittings to -6AN
    • Includes Turbine Housing Inlet & Outlet V-Band Clamps

    INSTALLATION HARDWARE:

  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
